  • LZ3RH-5.0/5.08
  • Rated voltage(v):
    400
  • Rated current(A):
    17.5
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

Products Description:

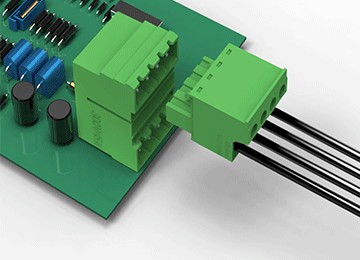

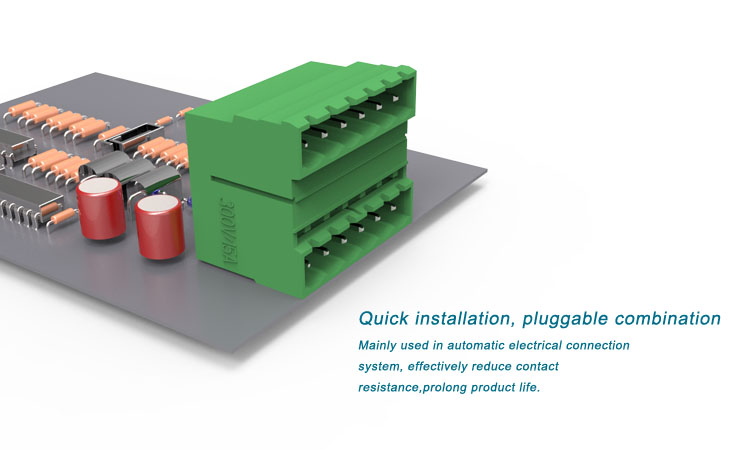

pluggable terminal blocks

Product Advantage



▇  Small space , save space

▇  Low structural height

▇  Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

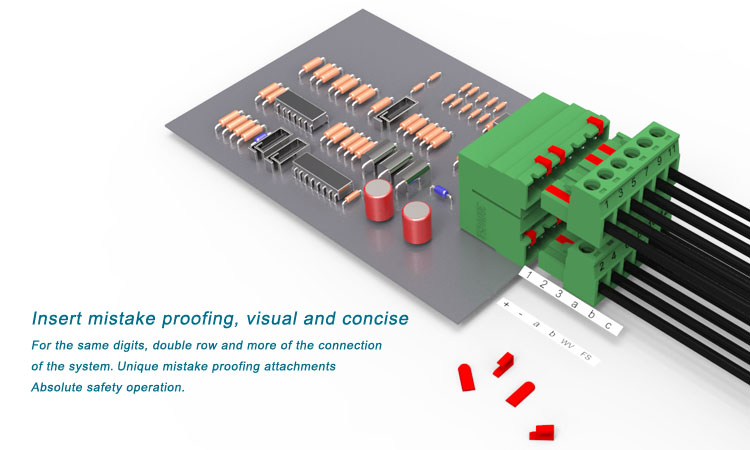

▇  The plug socket identity protection


terminal block connectors

plug-in terminals

connectors



Assembly of LZ3RH-5.0/5.08 :





LC1-5.0/5.08 terminal blocks LC2A-5.0/5.08 terminal blocks LC2B-5.0/5.08 terminal blocks LC3-5.0/5.08 terminal blocks LC4-5.0/5.08 terminal blocks
LC5-5.0/5.08 terminal blocks LC6-5.0/5.08 terminal blocks LC6H-5.0/5.08 terminal blocks LC7A-5.0/5.08 terminal blocks LC7B-5.0/5.08 terminal blocks
LC9-5.08 terminal blocks LC12V-5.08 terminal blocks LC12R-5.08 terminal blocks LC13-5.08 terminal blocks LC17-5.08 terminal blocks
LC15-5.0/5.08 terminal blocks LC16-5.0/5.08 terminal blocks LC17U-5.08 terminal blocks LC14-5.0/5.08/3.81 terminal blocks
