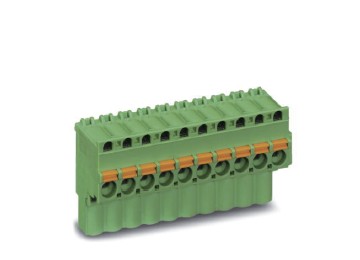

  • LZ3VH-5.0/5.08
  • Rated voltage(v):
    400
  • Rated current(A):
    17.5
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:

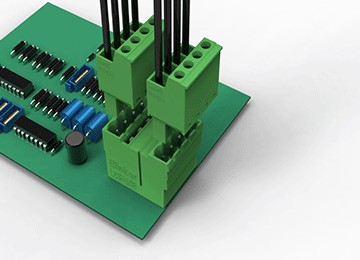

The top and bottom of H-type are the same. The top and bottom of T-type are staggered. They can be connected on the PCB or external, such as shell inlay. The direction is horizontal or vertical. The side can be with screw or without screw position. The side is divided into closed and not the closed.


Diagram and parameter description:








Assembly of LC1M-7.5/7.62:

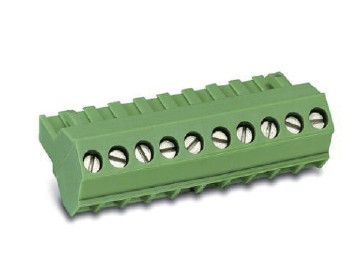

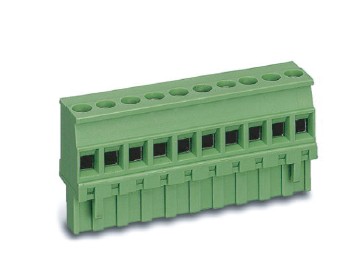

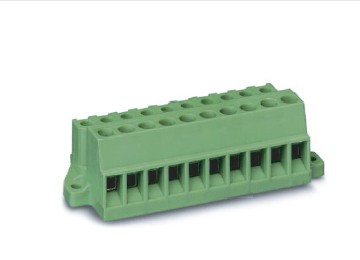

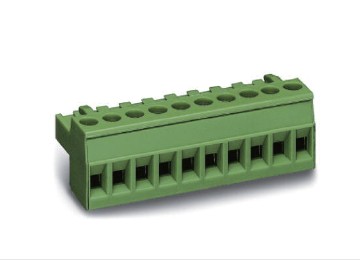

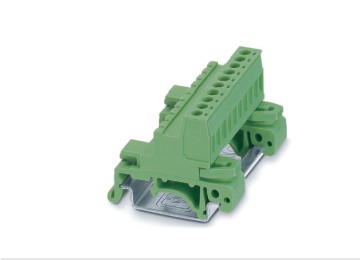

LC1-5.0/5.08 terminal blocks LC2A-5.0/5.08 terminal blocks LC2B-5.0/5.08 terminal blocks LC3-5.0/5.08 terminal blocks LC4-5.0/5.08 terminal blocks

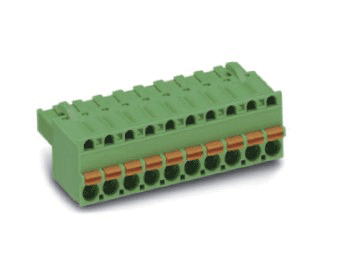

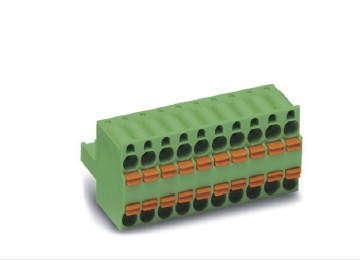

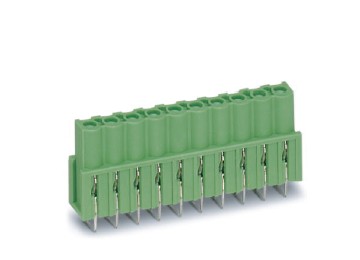

LC5-5.0/5.08 terminal blocks LC6-5.0/5.08 terminal blocks LC6H-5.0/5.08 terminal blocks LC7A-5.0/5.08 terminal blocks LC7B-5.0/5.08 terminal blocks
