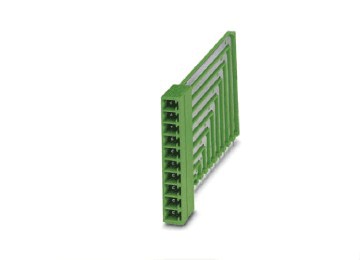

  • LZ4-3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24


Products Description:


LZ4 products can save the wiring space. The pin bents with 90 degrees, and is perpendicular to the PCB, to save more space.

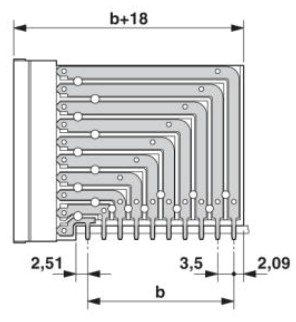

Diagram and parameter description:





Aseembly of LZ4-3.81:



 LC1-3.5/3.81 terminal blocks  LC2A-3.5/3.81 terminal blocks  LC3-3.81 terminal blocks  LC2B-3.5/3.81 terminal blocks  LC12V-3.5/3.81 terminal blocks
 LC12R-3.5/3.81 terminal blocks  LC6-3.5/3.81 terminal blocks  LC8-3.5/3.81 terminal blocks  LC8MJ-3.5/3.81 terminal blocks
