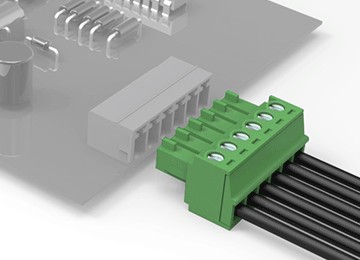

LC1-3.5/3.81
Rated voltage(v):
160
Rated current(A):
8
Wire Size(m㎡):
1.5
Wire Size(AWG):
28-16
Single/multi-core diameter(m㎡):
0.08-1.5
Maximum tightening torque(Nm):
0.22-0.25
Screw:
M2
Strip length:
7
Resistant voltage(kv):
2.5
Insulation Resistance:
PA/V0
Poles(P):
2-24

Introduction of LC Series pluggable terminal blocks：

terminal blocks

Product Advantage

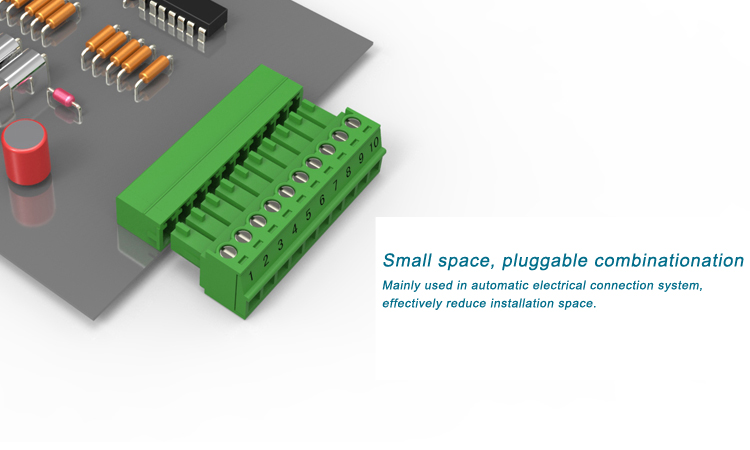

■ Small space , save space

■ Low structural height

■ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

■ Identity protection

electric connectors

terminal block connector

terminal wire connectors

Assembly of LC1-3.5/3.81:

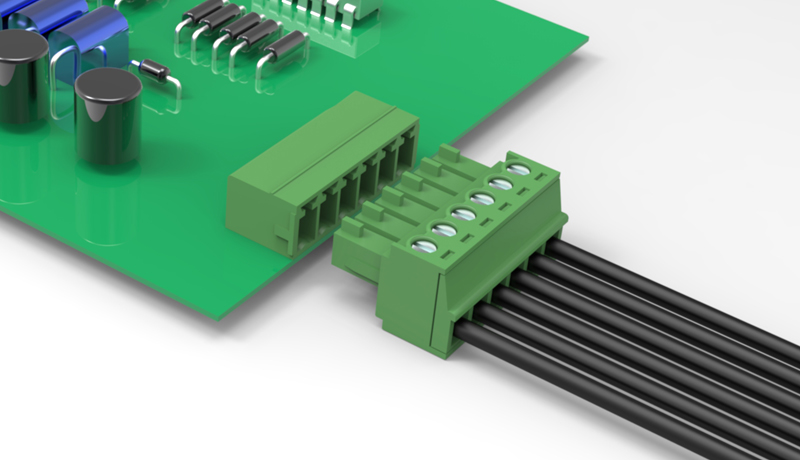

LZ1R-3.5/3.81 terminal blocks

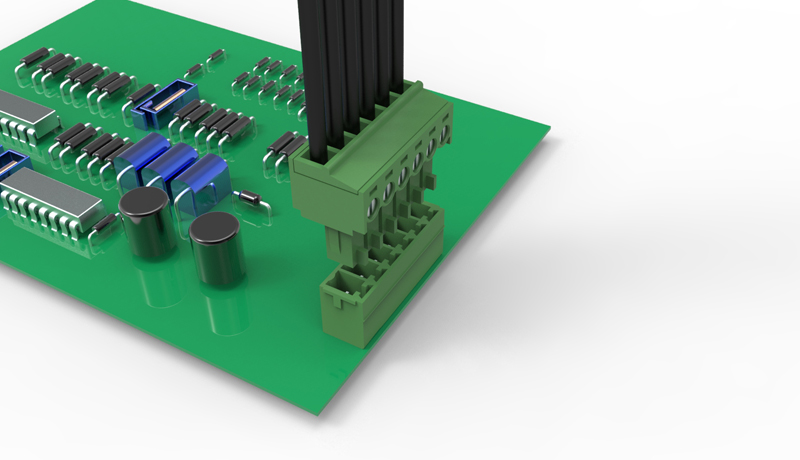

LZ1V-3.5/3.81 terminal blocks

LZ2D-3.5/3.81 terminal blocks

LC10-3.81 terminal blocks

LZ3RH-3.5/3.81 terminal blocks

LZ3VH-3.5/3.81 terminal blocks

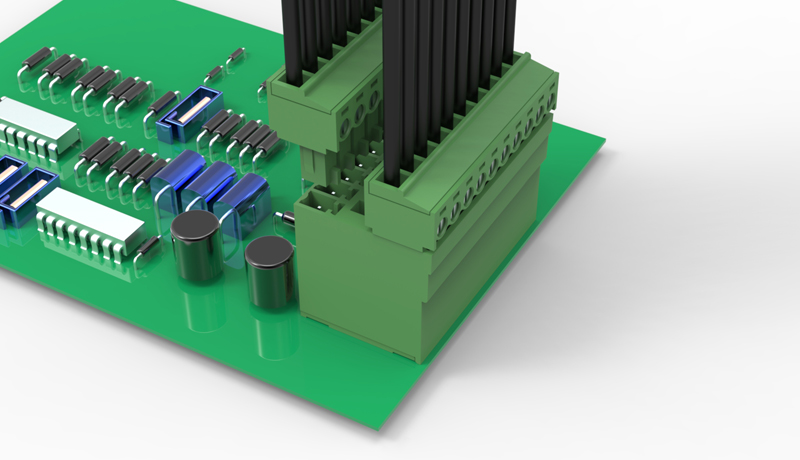

LZ3VT-3.5/3.81 terminal blocks

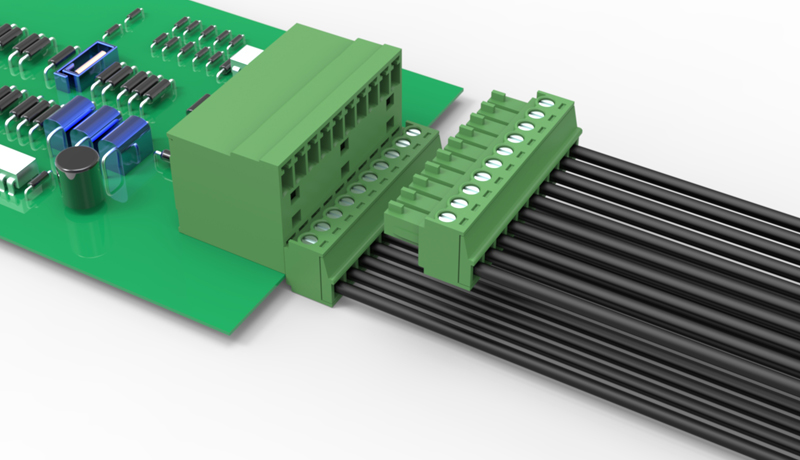

LZ3RT-3.5/3.81 terminal blocks

LZ6-3.81 terminal blocks

LZ6D-3.81/5.08 terminal blocks

Product Applications Scenarios:
