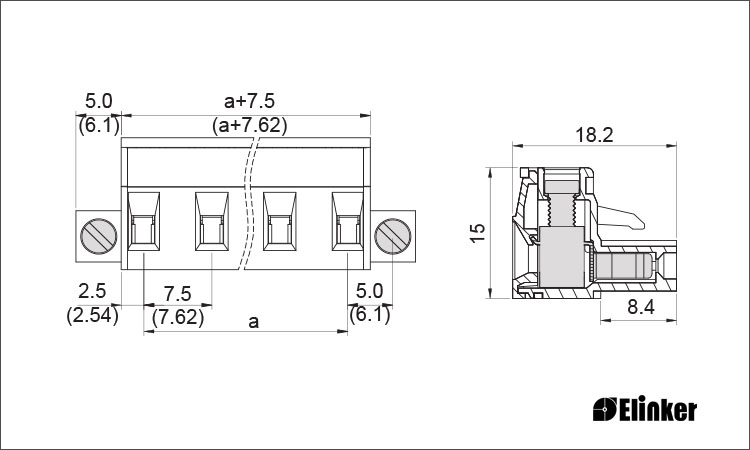

  • LC1M-7.5/7.62
  • Rated voltage(v):
    400
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    7
  • Resistant voltage(kv):
    6
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

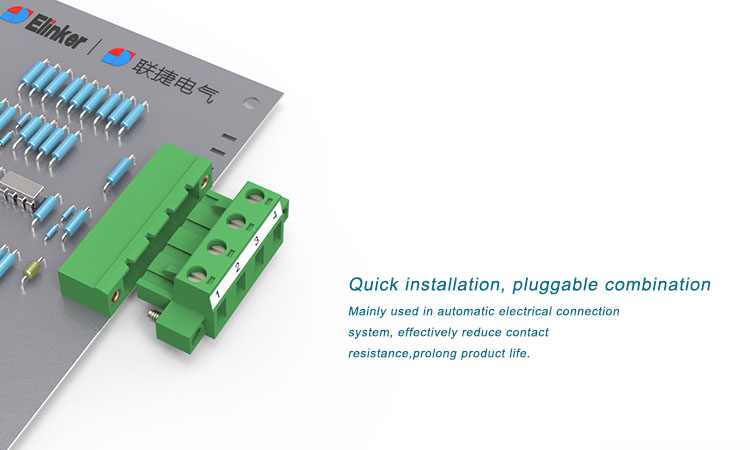

LC Series pluggable terminal blocks:



connectors



Product Advantage



▇  Small space , save space

▇  Low structural height

▇  Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

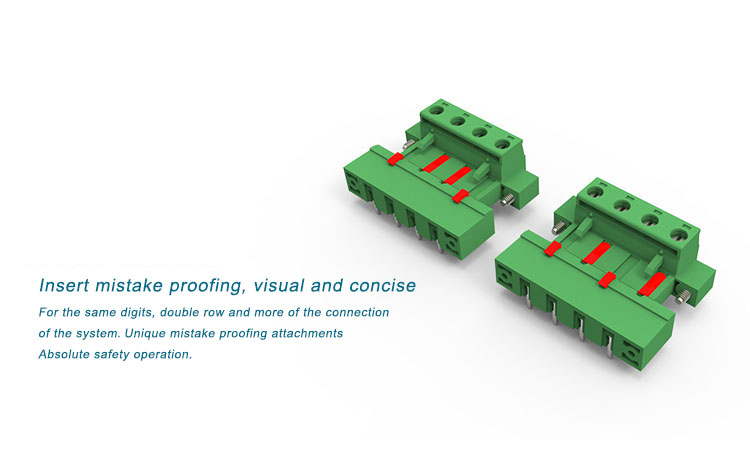

▇  The plug socket identity protection



pluggable terminal blocks

connectors



connectors





Assembly of LC1M-7.5/7.62:





LZ1VM-7.5/7.62 terminal blocks

 LZ1RM-7.5/7.62 terminal blocks
