  • LC2A-3.5/3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    28-16
  • Single/multi-core diameter(m㎡):
    0.08-1.5
  • Maximum tightening torque(Nm):
    0.22-0.25
  • Screw:
    M2
  • Strip length:
    7
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC2 Series Description:



electric terminal block



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

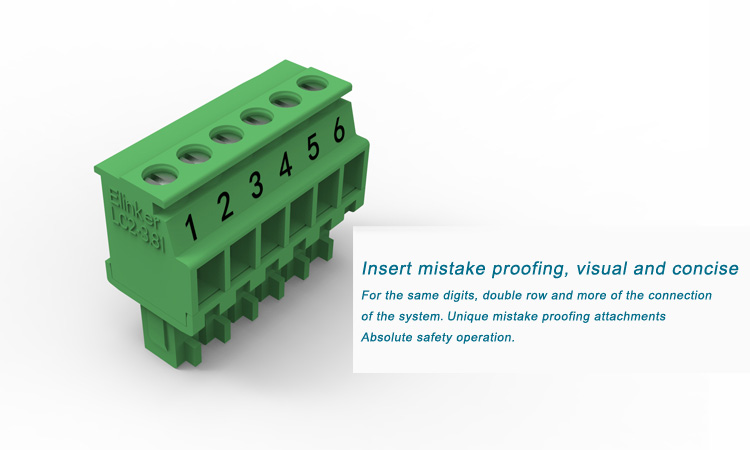

▇ The plug socket identity protection

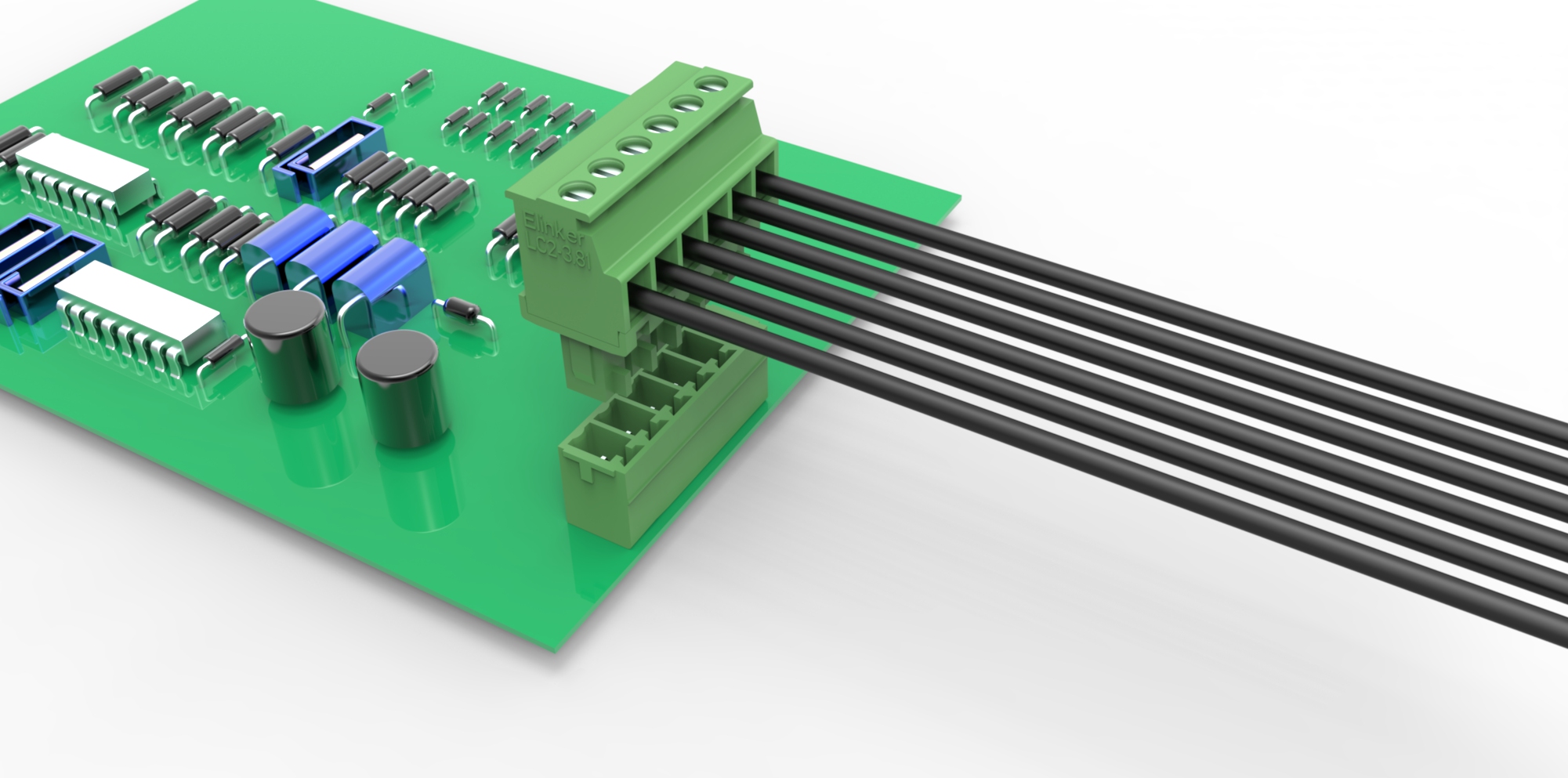

pluggable terminal connector


connectors



connectors

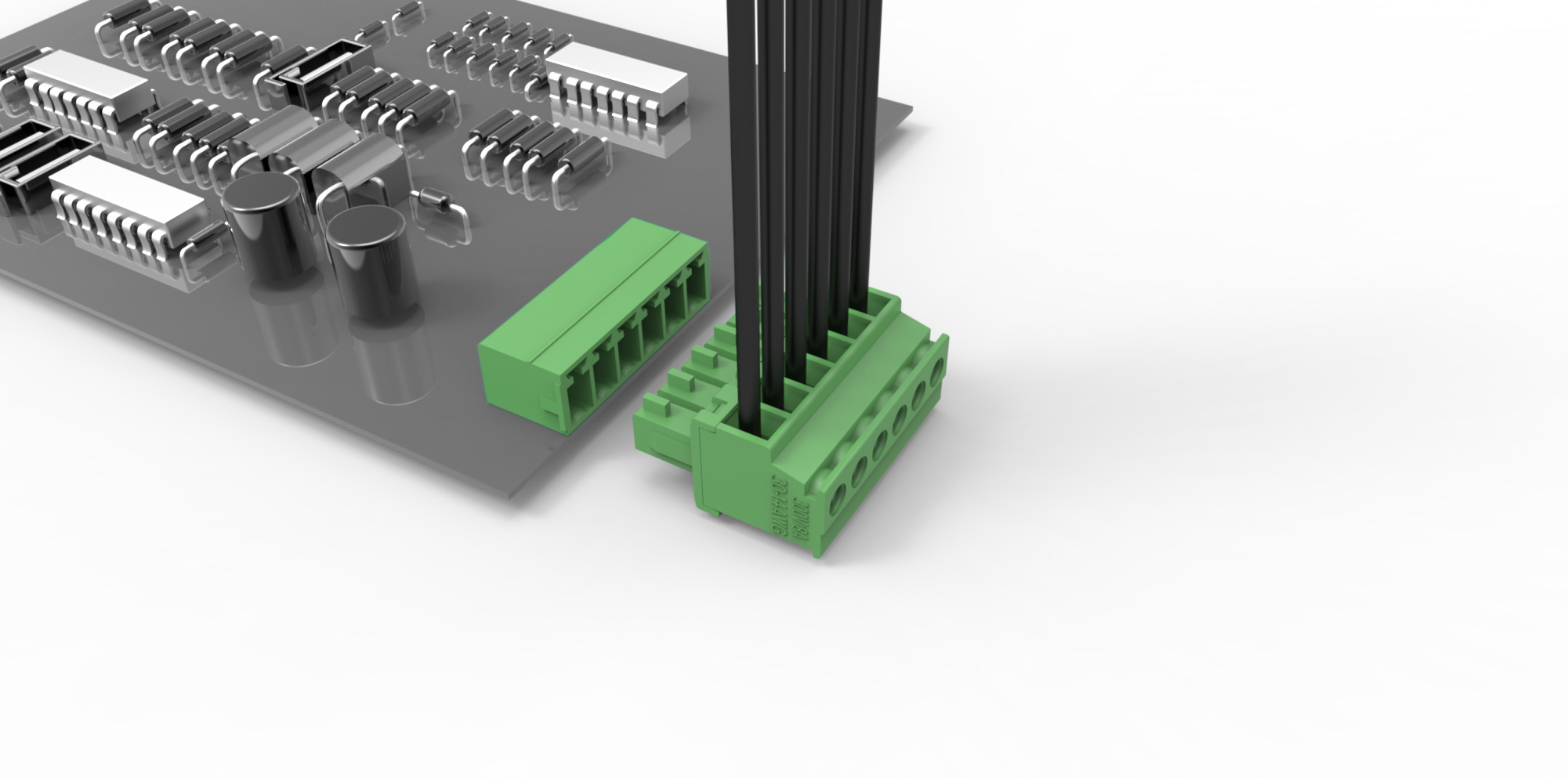

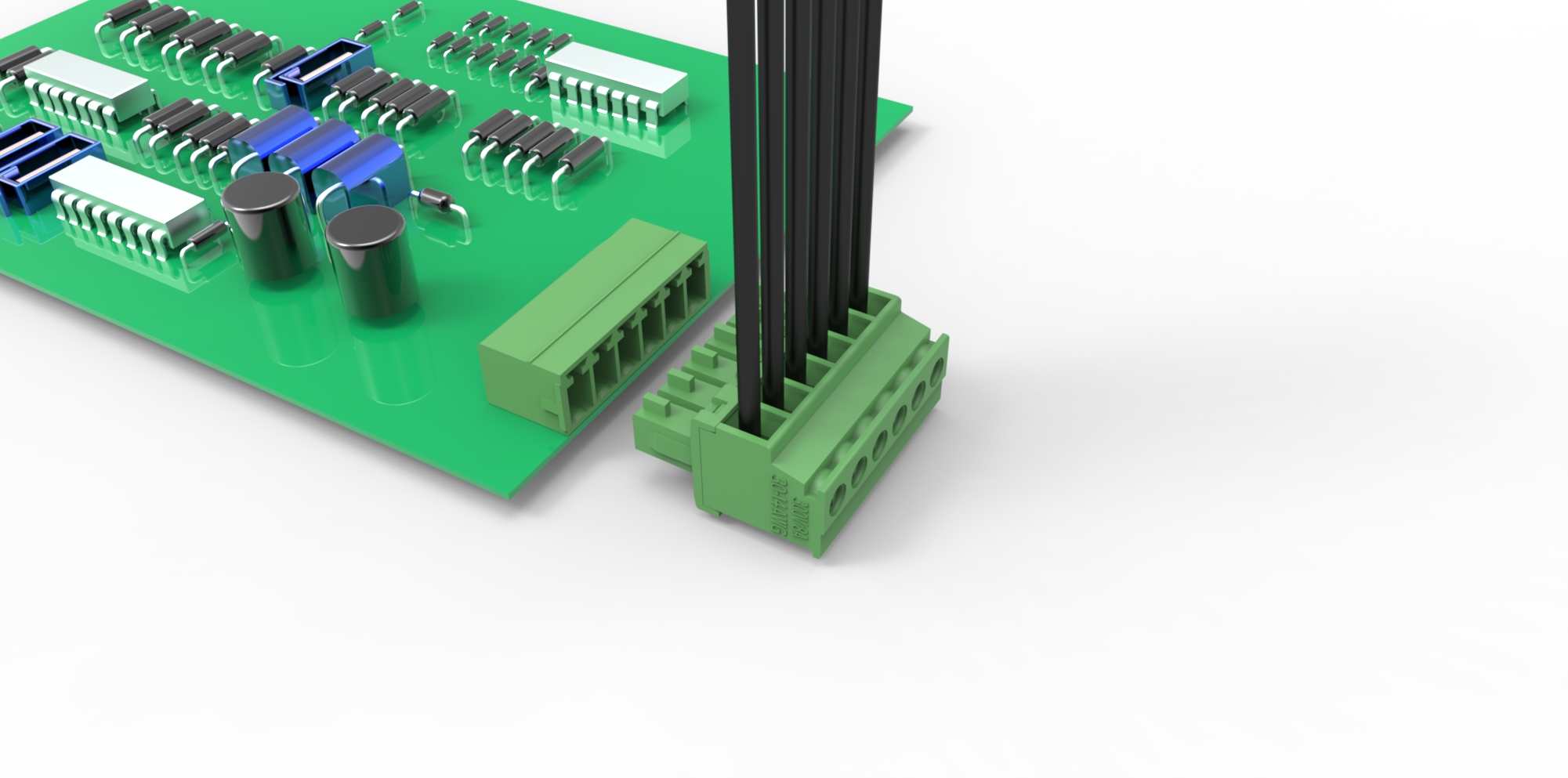

Assembly of LC2A-3.5/3.81：



 LZ1R-3.5/3.81 terminal blocks LZ1V-3.5/3.81 terminal blocks   LZ2D-3.5/3.81 terminal blocks LC10-3.81 terminal blocks  LZ3RH-3.5/3.81 terminal blocks
 LZ3VH-3.5/3.81 terminal blocks LZ3VT-3.5/3.81 terminal blocks  LZ3RT-3.5/3.81 terminal blocks   LZ6-3.81 terminal blocks LZ6D-3.81/5.08 terminal blocks
 LZ4-3.81 terminal blocks



Product Applications Scenarios:
