- LC2B-7.5/7.62
-
Rated voltage(v):400
-
Rated current(A):17.5
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:7
-
Resistant voltage(kv):6
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
LC2 Series Description:
The insert direction of LC2 Series products is perpendicular to the wires. The plugs snap each other to save space.Because of the insert direction, the wire will not be squeezed while pushing or pulling of the plugs.Note: The plug can only be charged in the case of non-operation.
Diagram and parameter description:

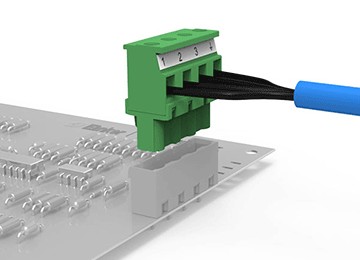

Aseembly of LC2B-7.5/7.62:
 |
 |
 |
 |
