  • LC3-3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    28-16
  • Single/multi-core diameter(m㎡):
    0.08-1.5
  • Maximum tightening torque(Nm):
    0.22-0.25
  • Screw:
    M2
  • Strip length:
    10
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC3 Series Description:



LC3 series plug is with a positive connection. The direction of screwdriver and wire insertion is prarallel; In order to avoid mis-insertion, coded adapter can be used.  We can provide the adapters with fixed screw in the side, which may constitute anti-vibration connection.



Diagram and parameter description:

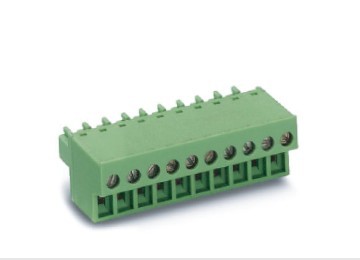

Assembly of LC3-3.81:
