- LC3M-5.0/5.08
-
Rated voltage(v):320
-
Rated current(A):17.5
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:10
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-24
LC3 Series Description:
LC3 series plug is with a positive connection. The direction of screwdriver and wire insertion is prarallel; In order to avoid mis-insertion, coded adapter can be used. We can provide the adapters with fixed screw in the side, which may constitute anti-vibration connection.
Diagram and parameter description:

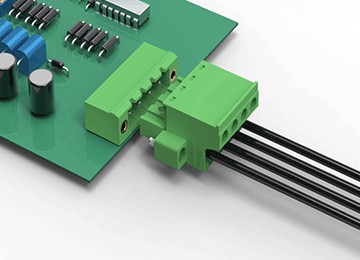

Assembly of LC3M-5.0/5.08:

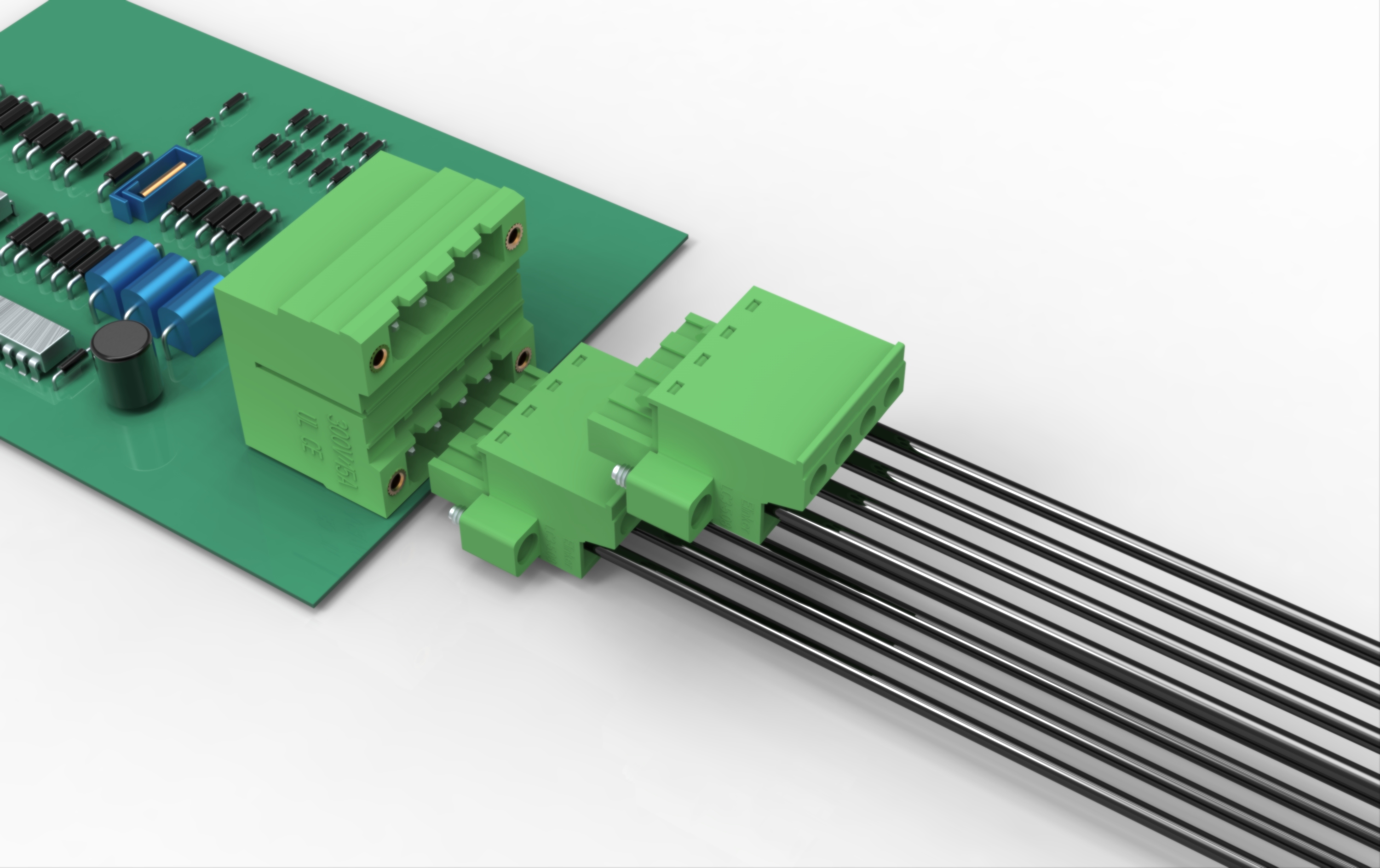

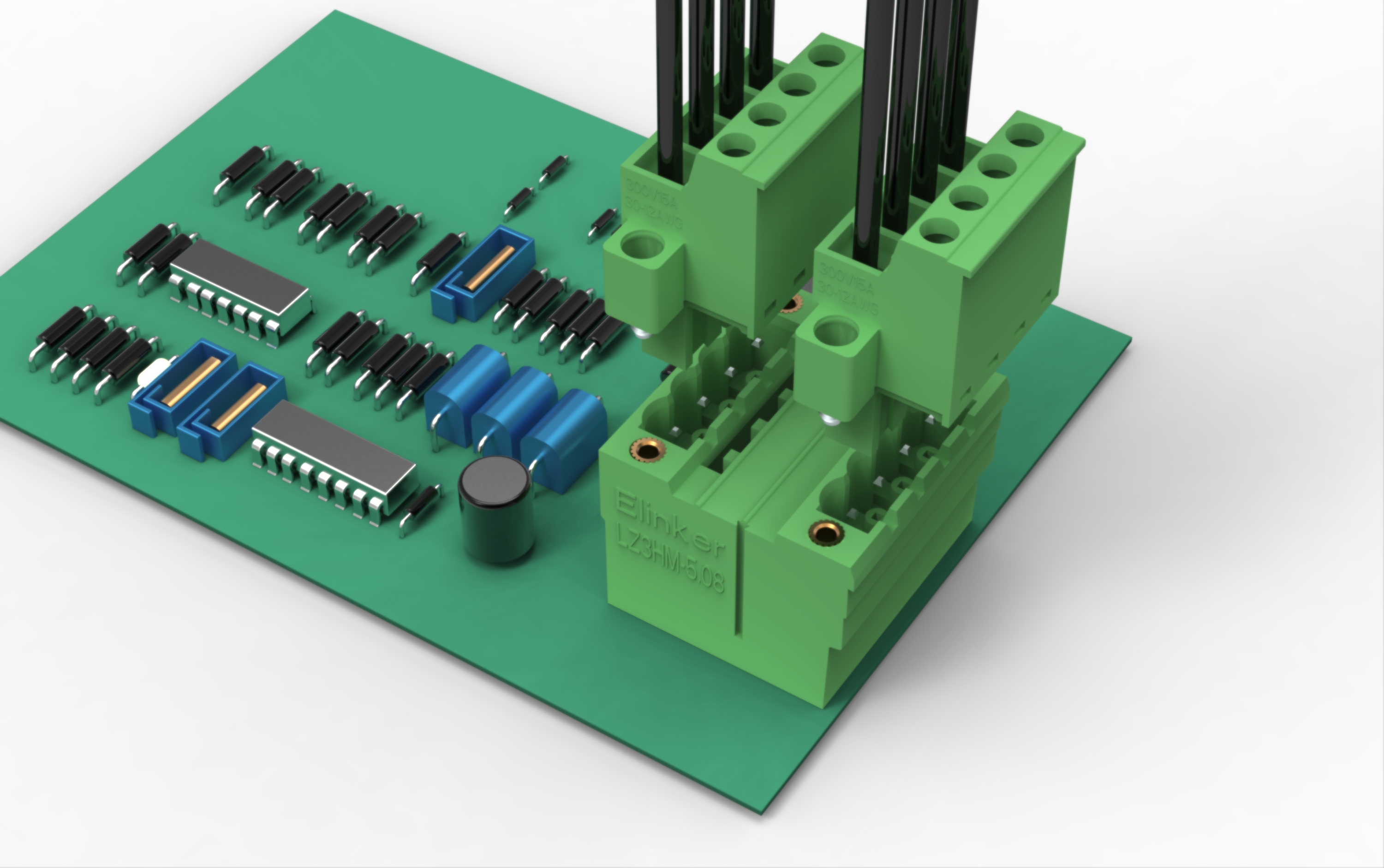

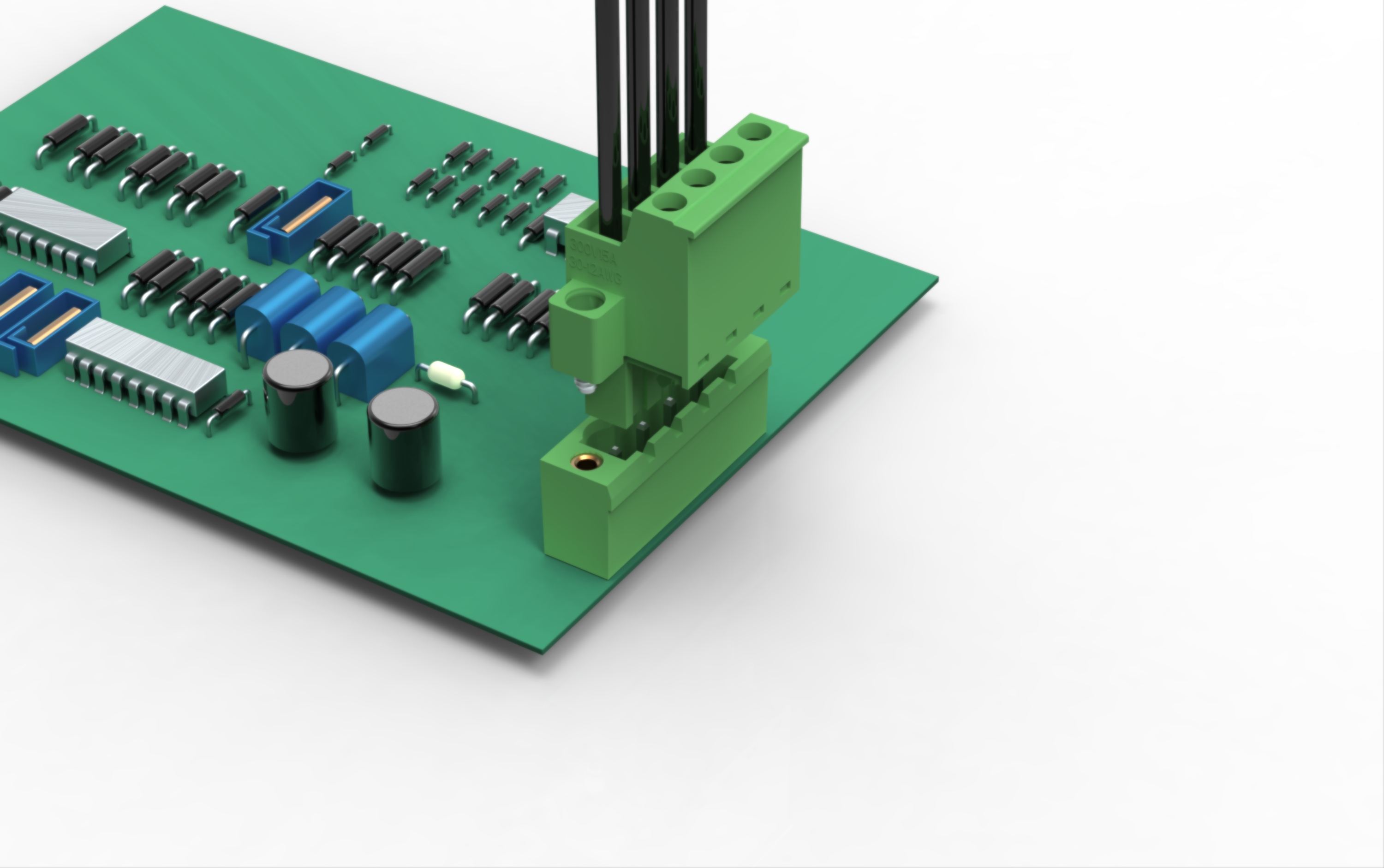

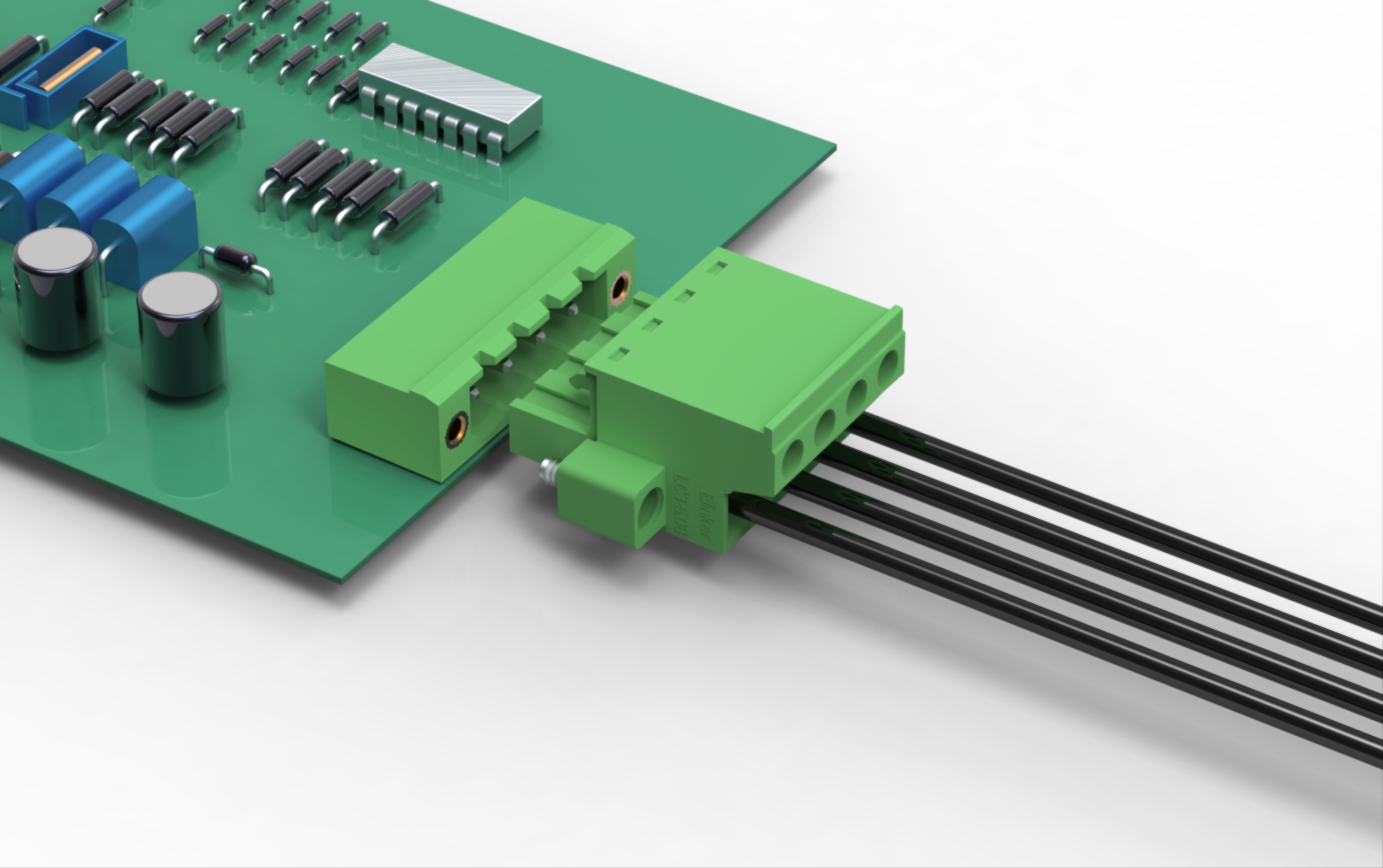

Product Applications Scenarios:
 |
 |
 |
 |
