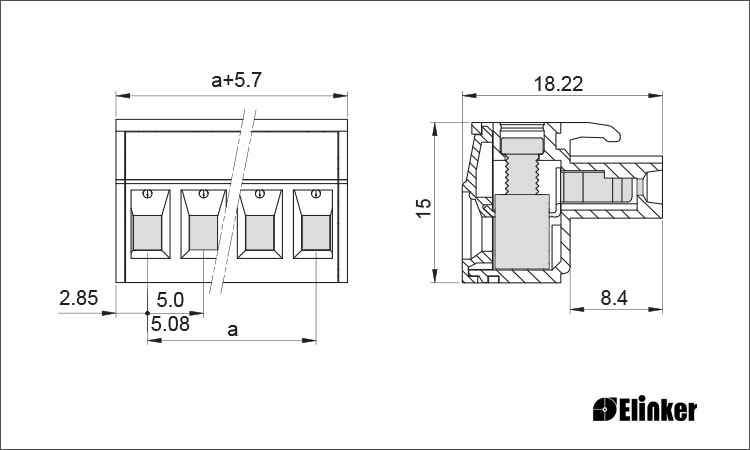

  • LC5-5.0/5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    30-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    7
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC5 Series Description:



terminal blocks connector



Product  Advantage



▇  Small space , save space

▇  Low structural height

▇  Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

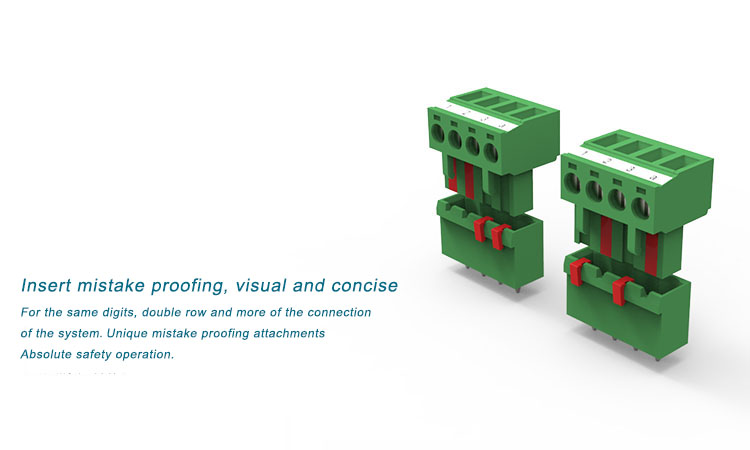

▇  The plug socket identity protection

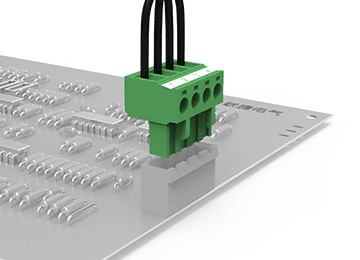

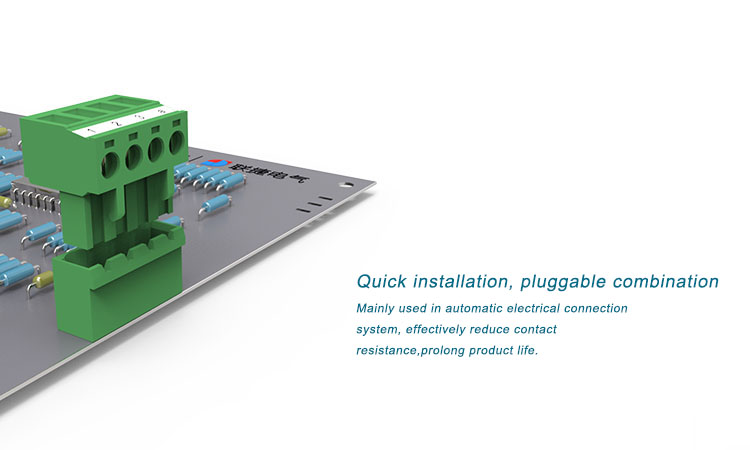

electric pluggable terminal blocks

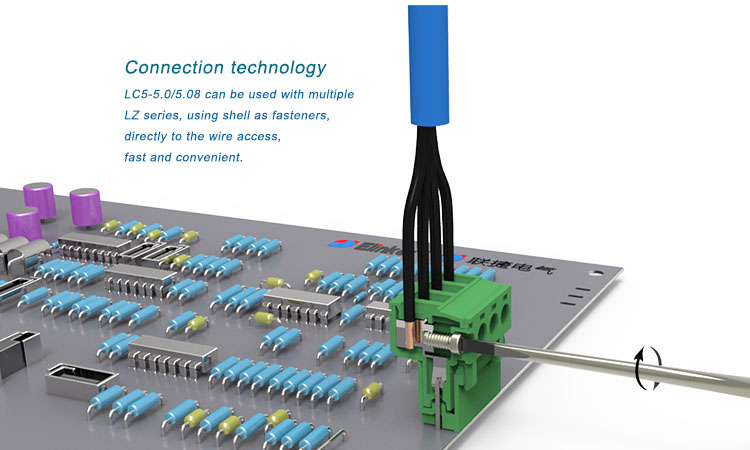

Assembly of LC5-5.0/5.08:



 LZ1R-5.0/5.08 terminal blocks LZ1RK-5.0/5.08 terminal blocks   LZ1V-5.0/5.08 terminal blocks  LZ1VK-5.0/5.08 terminal blocks LZ2D-5.0/5.08 terminal blocks
LZ2DK-5.0/5.08 terminal blocks   LC18-5.08 terminal blocks  LZ3RH-5.0/5.08 terminal blocks LZ3RT-5.0/5.08 terminal blocks  LZ3RTK-5.0/5.08 terminal blocks
 LZ3VTM-5.0/5.08 terminal blocks  LZ3VT-5.0/5.08 terminal blocks  LZ3VH-5.0/5.08 terminal blocks LC19U-5.08 terminal blocks   LC19Y-5.08 terminal blocks
LZ6D-3.81/5.08 terminal blocks   LZ6-5.08 terminal blocks  LZ4K-5.0/5.08 terminal blocks LZ5M-5.0/5.08 terminal blocks
