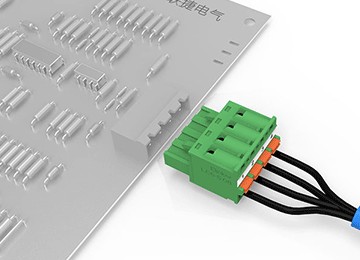

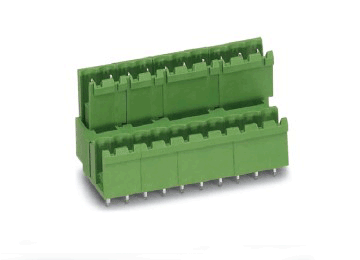

  • LC6-5.0/5.08
  • Rated voltage(v):
    400
  • Rated current(A):
    15
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Strip length:
    10
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC6 Series Description:

terminal block





Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

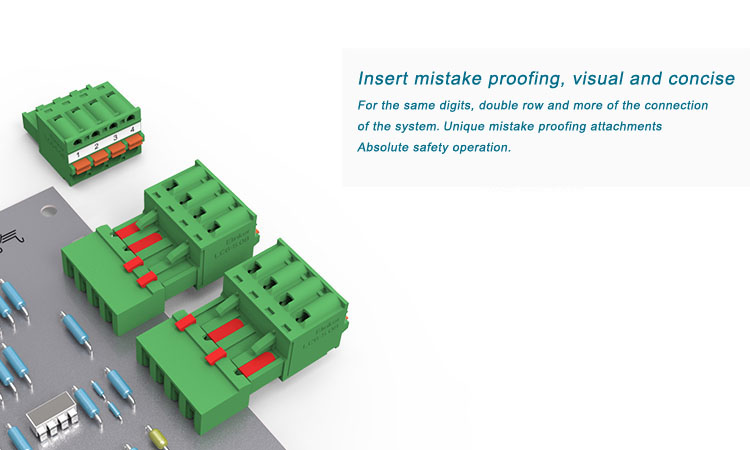

▇ The plug socket identity protection

connector

terminal blocks

pluggable connectors

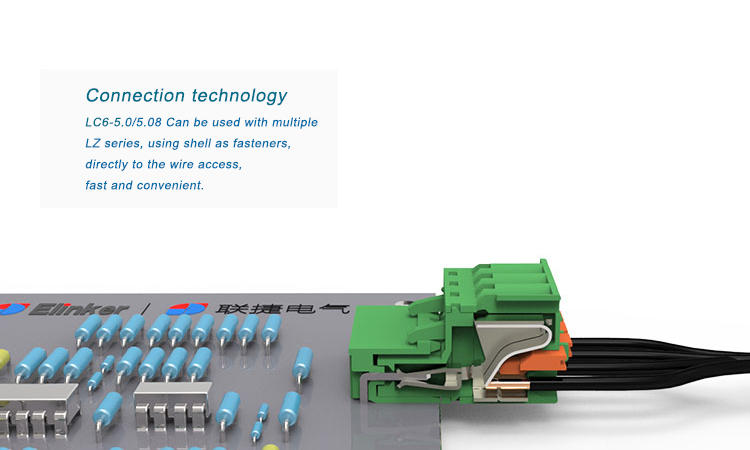

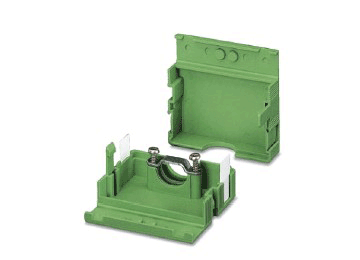

Assembly of LC6-5.0/5.08:





 LZ1R-5.0/5.08 terminal blocks LZ1RK-5.0/5.08 terminal blocks   LZ1V-5.0/5.08 terminal blocks  LZ1VK-5.0/5.08 terminal blocks LZ2D-5.0/5.08 terminal blocks
LZ2DK-5.0/5.08 terminal blocks   LC18-5.08 terminal blocks  LZ3RH-5.0/5.08 terminal blocks LZ3RT-5.0/5.08 terminal blocks  LZ3RTK-5.0/5.08 terminal blocks
 LZ3VTM-5.0/5.08 terminal blocks  LZ3VT-5.0/5.08 terminal blocks  LZ3VH-5.0/5.08 terminal blocks LC19U-5.08 terminal blocks   LC19Y-5.08 terminal blocks
LZ6D-3.81/5.08 terminal blocks   LZ6-5.08 terminal blocks  LZ4K-5.0/5.08 terminal blocks LZ5M-5.0/5.08 terminal blocks
