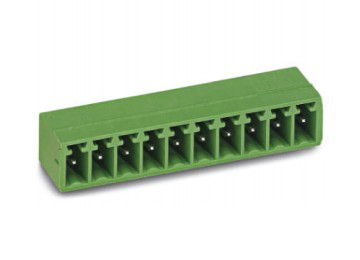

  • LC8-3.5/3.81
  • Rated voltage(v):
    160
  • Rated current(A):
    8
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    26-14
  • Single/multi-core diameter(m㎡):
    0.14-1.5
  • Strip length:
    7
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC8 Series Description:



The prominent feature of LC8 Series is Flat-type; They can be used with small size of the module,to increase the wiring capacity on the PCB to increase. There are screws in the side, and theself-locking clip feature can increase the firmness of patch. We can provide 5.0/5.08/7.5/5.62 pitch.



Diagram and parameter description:







Assembly of LC8-3.5/3.81:

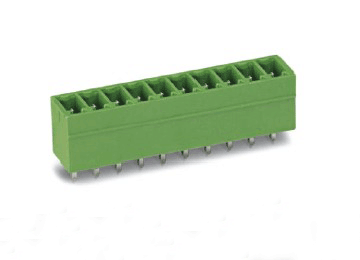

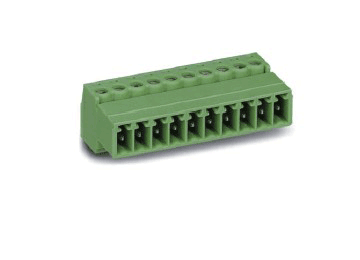

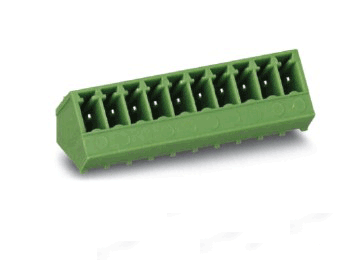

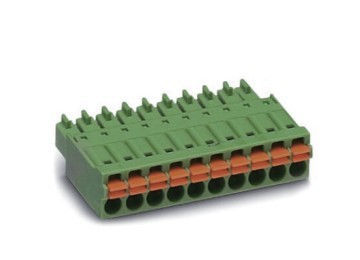

 LZ1R-3.5/3.81 terminal blocks LZ1V-3.5/3.81 terminal blocks   LZ2D-3.5/3.81 terminal blocks LC10-3.81 terminal blocks  LZ3RH-3.5/3.81 terminal blocks

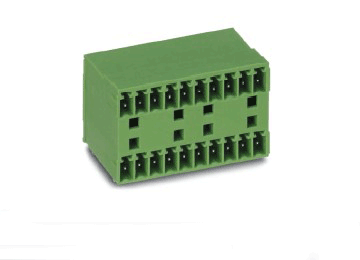

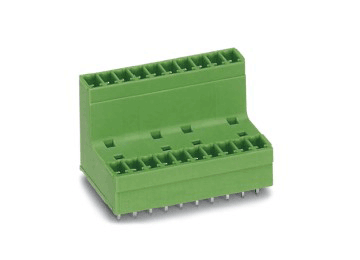

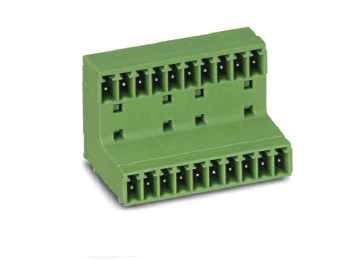

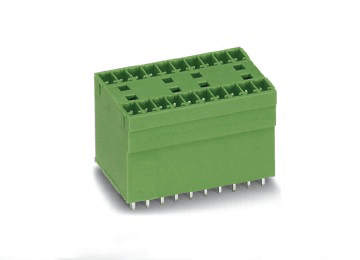

 LZ3VH-3.5/3.81 terminal blocks LZ3VT-3.5/3.81 terminal blocks  LZ3RT-3.5/3.81 terminal blocks   LZ6-3.81 terminal blocks LZ6D-3.81/5.08 terminal blocks
