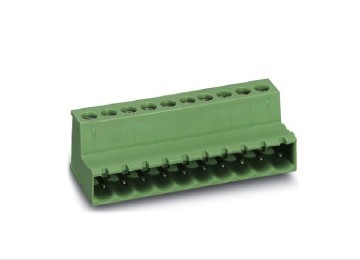

  • LC10-5.08
  • Rated voltage(v):
    400
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    16
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC10 Series Description:



Product Advantage



■ Small space , save space

■ Low structural height

■ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

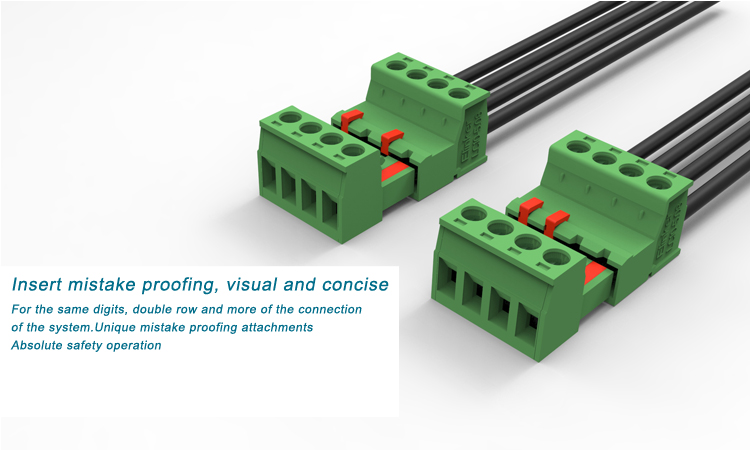

■ Identity protection

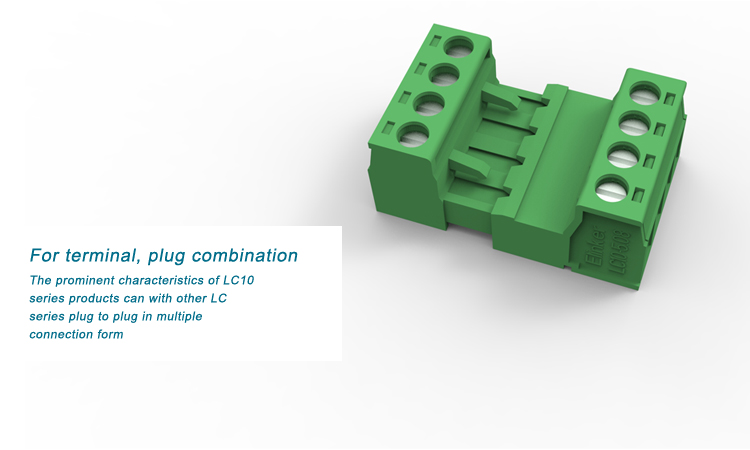

Aseembly of LC10-5.08:
