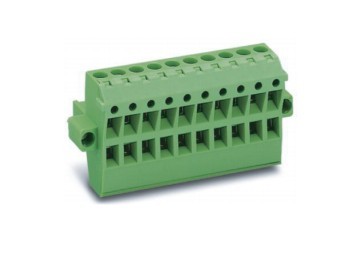

- LC13M-5.08
-
Rated voltage(v):320
-
Rated current(A):20
-
Wire Size(m㎡):2.5
-
Wire Size(AWG):24-12
-
Single/multi-core diameter(m㎡):0.2-2.5
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:M3
-
Strip length:10
-
Resistant voltage(kv):4
-
Insulation Resistance:PA/V0
-
Poles(P):2-12
LC13 Series Description:
LC13 series offer 2-in-1-out connection method. This is easily to implement 2-way connection. Man can use self-adhesive tags to mark on the position. There are screw bits in the side. With the sockets they can match the seismic connetion.
Diagram and parameter description:
.jpg)
.jpg)
Aseembly of LC13M-5.08：
 |
 |
 |
 |
 |
 |
