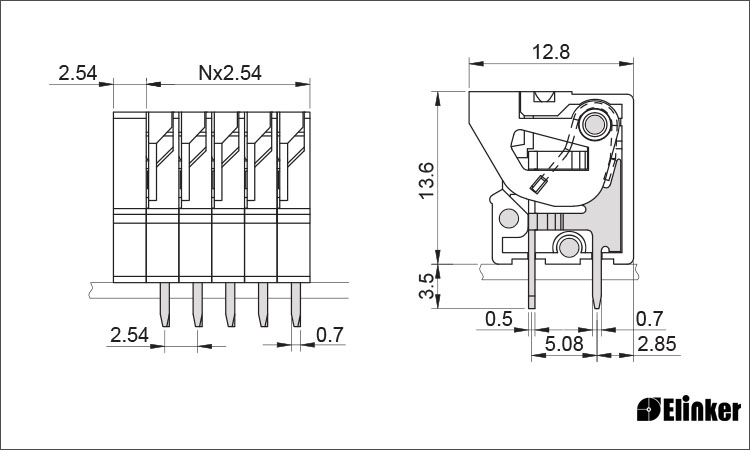

  • LS141V-2.54
  • Rated voltage(v):
    130
  • Rated current(A):
    13.5
  • Wire Size(m㎡):
    1.0
  • Wire Size(AWG):
    24-20
  • Strip length:
    11
  • Resistant voltage(kv):
    1.25
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    Mosaic

Products Description:



screw terminal



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

▇ The plug socket identity protection



electric connectors





terminal connectors
