Products Location:Home >> Products
  • LS142V-5.08/7.62
  • Rated voltage(v):
    450
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    22-16
  • Strip length:
    10
  • Resistant voltage(kv):
    2
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    Mosaic

Products Description:



screw terminal block connectors



Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area



▇ The plug socket identity protection


connector blocks

electric connector blocks

connectors

terminal blocks

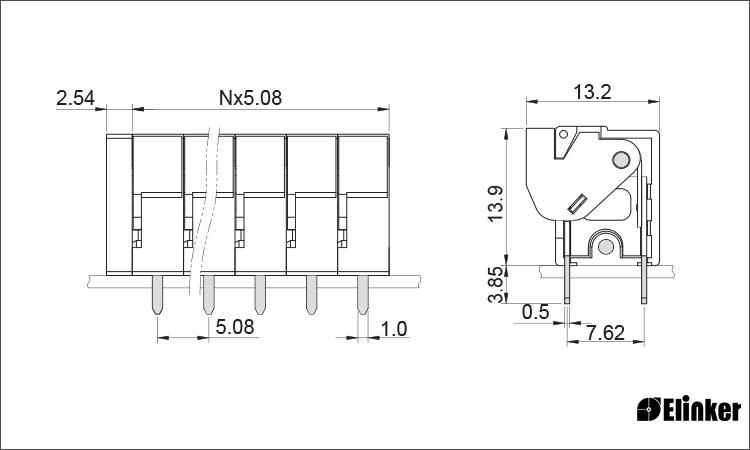

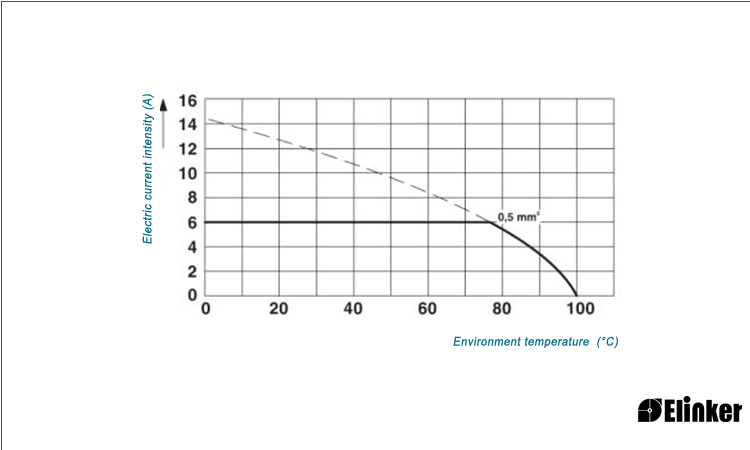

Diagram and parameter description:
