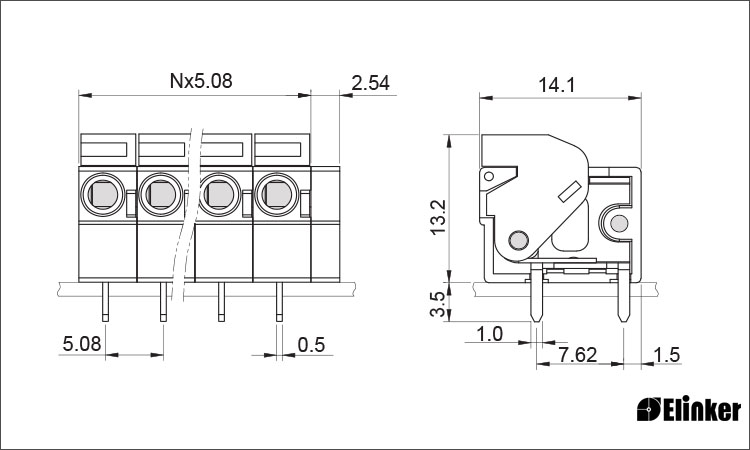

  • LS142R-5.08/7.62
  • Rated voltage(v):
    450
  • Rated current(A):
    17.5
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    22-14
  • Strip length:
    10
  • Resistant voltage(kv):
    2
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    1-XX

Products Description:

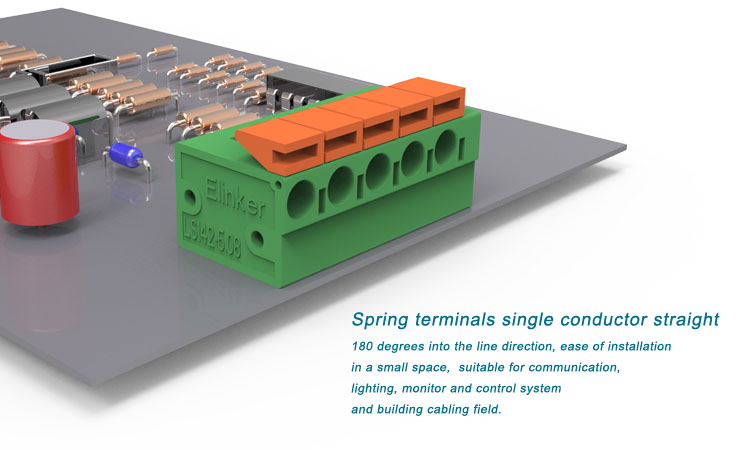

electric connectors





Product Advantage



▇ Small space , save space

▇ Low structural height

▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

▇ The plug socket identity protection


terminal blocks

screw terminal

screw terminal blocks

screw terminal connectors
