  • LS235-5.0/7.5
  • Rated voltage(v):
    250
  • Rated current(A):
    10
  • Wire Size(m㎡):
    1.5
  • Wire Size(AWG):
    20-18
  • Strip length:
    10
  • Resistant voltage(kv):
    2
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    Mosaic



■ 180 degrees the wire direction for go in,the poles are flexible

■ Wire range is 2.5mm2

■ spring connection,it's convenient

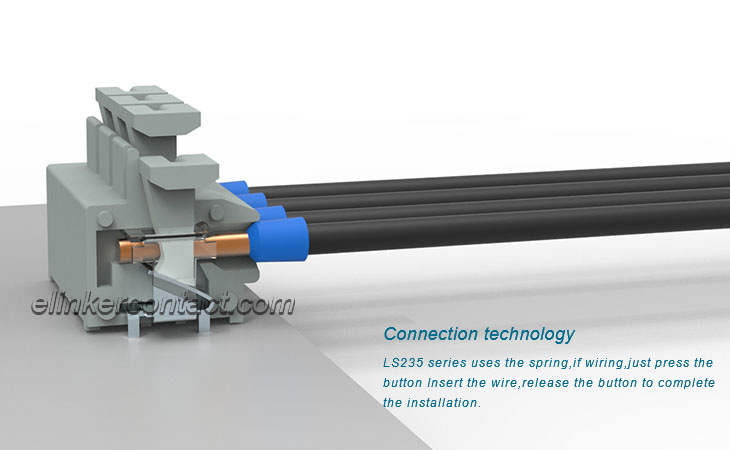

■ LS235 is screwless terminal blcok,press the button,easy to connect
