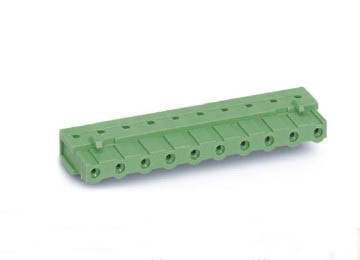

  • LC12R-7.5/7.62
  • Rated voltage(v):
    320
  • Rated current(A):
    20
  • Resistant voltage(kv):
    6
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC12 Series Description:



The feature of LC12 series is, that they are fixed with active plug on the PCB. Man can clearly distinguish the PCB input and output. We have  3.5, 3.81, 5.08, 7.5, 7.62 pitch. We can provide the products, which have nuts in the side with. With the LZ series they can match the seismic connections.



Diagram and parameter description:







Aseembly of LC12R-7.5/7.62:



LZ1R-7.5/7.62 terminal blocks  LZ1RK-7.5/7.62 terminal blocks  LZ1V-7.5/7.62 terminal blocks  LZ1VK-7.5/7.62 terminal blocks
