LSC1-5.0/7.5
Rated voltage(v):
400
Rated current(A):
20
Wire Size(m㎡):
2.5
Wire Size(AWG):
22-14
Strip length:
9
Resistant voltage(kv):
2.5
Insulation Resistance:
PA/V0
Poles(P):
Mosaic
Products Description:

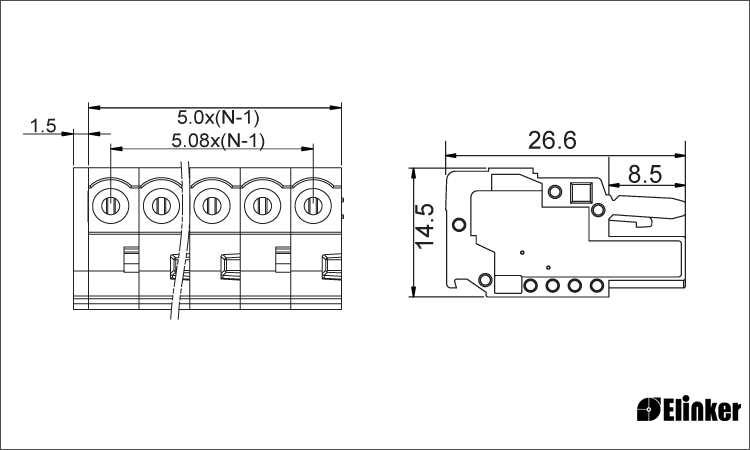

Diagram and parameter description:
