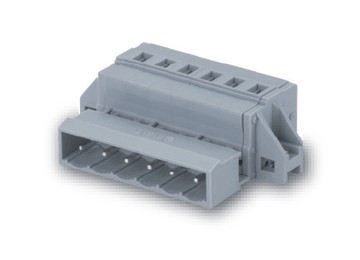

  • LSC1M-5.0/7.5
  • Rated voltage(v):
    400
  • Rated current(A):
    20
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    22-14
  • Strip length:
    9
  • Resistant voltage(kv):
    2.5
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    Mosaic

Products Description:





Product Advantage



▇  Small space , save space

▇  Low structural height

▇  Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

▇  The plug socket identity protection


spring terminal blocks

connectors

electric terminals

terminal block connectors

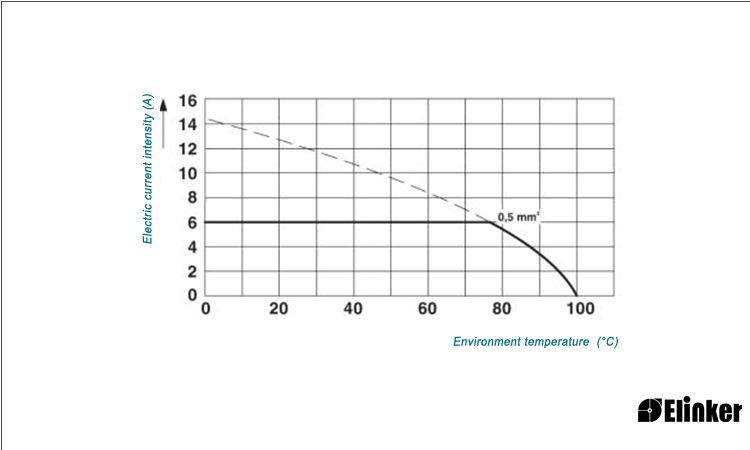

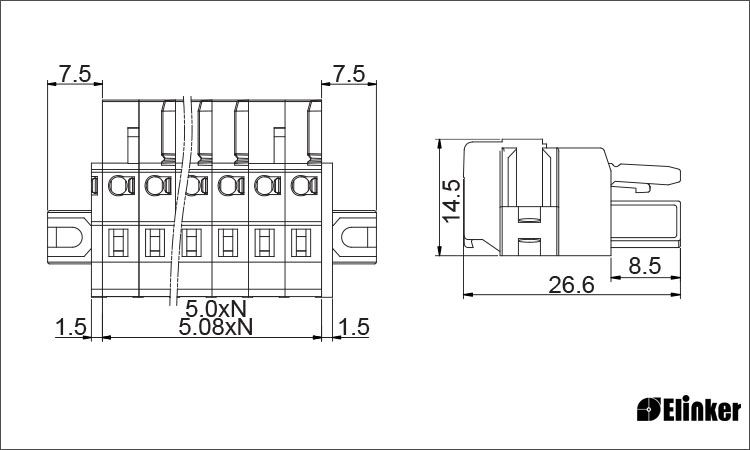

Diagram and parameter description:
