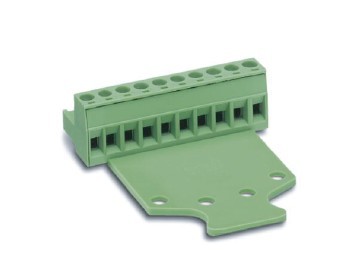

  • LC14-5.0/5.08/3.81
  • Rated voltage(v):
    320
  • Rated current(A):
    20
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    28-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    10
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC14 Series Description:



LC14 series have the power structure. This makes push-pull to become more easily and quickly.

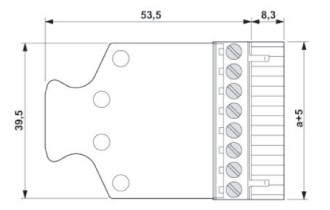

Diagram and parameter description:





Aseembly of LC14-5.0/5.08/3.81:
