  • LG300V-5.0
  • Rated voltage(v):
    250
  • Rated current(A):
    24
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    22-14
  • Single/multi-core diameter(m㎡):
    0.14-2.5
  • Maximum tightening torque(Nm):
    0.35
  • Screw:
    3
  • Strip length:
    6-7
  • Resistant voltage(kv):
    2
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

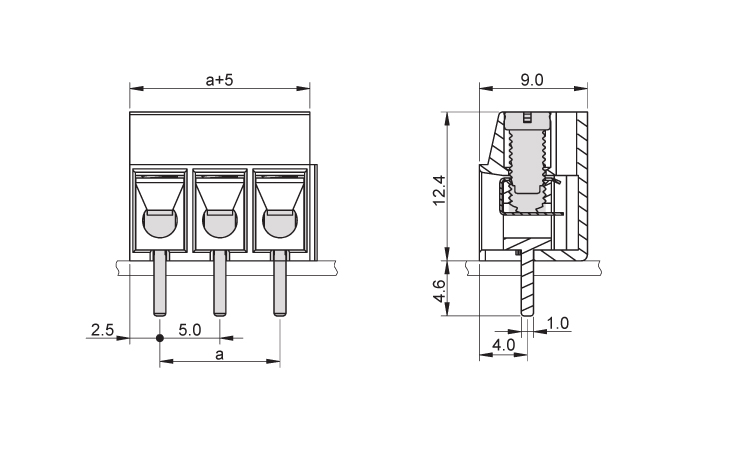

Diagram and parameter description:
