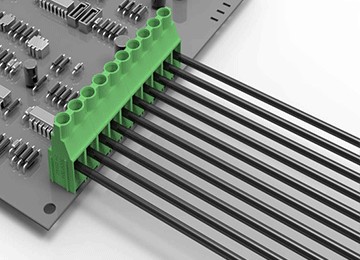

- LG762-7.62
-
Rated voltage(v):630
-
Rated current(A):32
-
Wire Size(m㎡):4
-
Wire Size(AWG):24-10
-
Single/multi-core diameter(m㎡):0.2-6/0.2-4
-
Maximum tightening torque(Nm):0.5-0.6
-
Screw:3
-
Strip length:8
-
Resistant voltage(kv):6
-
Insulation Resistance:PA/V0
-
Poles(P):2-10
Products Description:
.jpg)

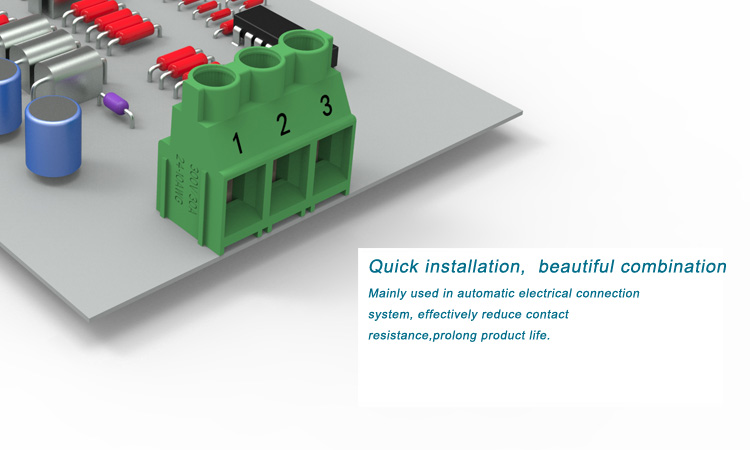

Product Advantage
▇ Small space , save space
▇ Low structural height
▇ Big connection capacity, can connect flexible conductor of 2.5mm2 cross-sectional area

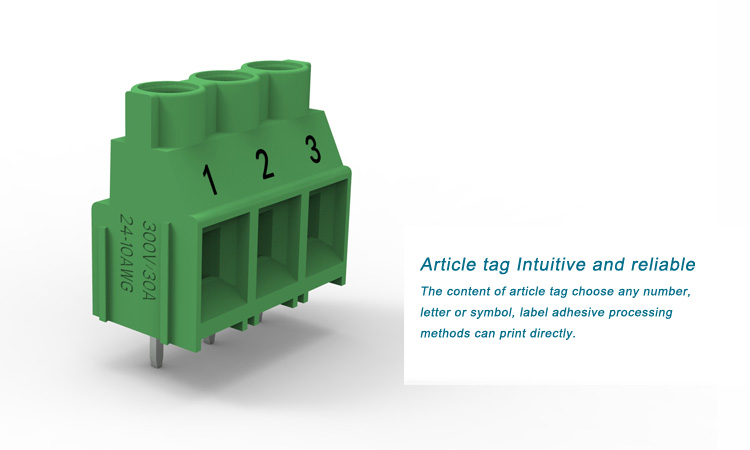

▇ The plug socket identity protection
.jpg)
.jpg)
.jpg)
Diagram and parameter description:
