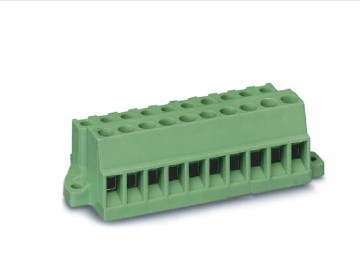

  • LC17-5.08
  • Rated voltage(v):
    320
  • Rated current(A):
    20
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    10
  • Resistant voltage(kv):
    4
  • Insulation Resistance:
    PA/V0
  • Poles(P):
    2-24

LC17 Series Description:



LC17 series have universal mounting feet. They can be installed in the standard rail. LC17U can be used with LC10 series.



Diagram and parameter description:





Aseembly of LC17-5.08：
